STCE55 Dual Axis Solar Tracker

STCE55:

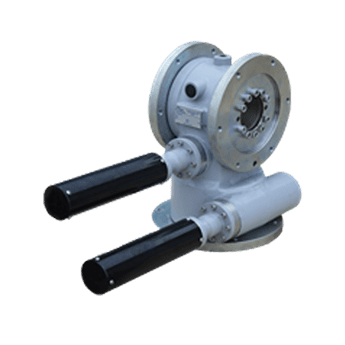

STCE55 Daylight is a system that operates based on the principle of biaxial operation. The gearbox is based on the principle of biaxial tracking on the working axis and operates on the x and y axis. Based on this model, it is driven by double body reducer and double motor. It is especially preferred in satellite type or focusing systems. As a result of double axis tracking, it creates a total energy flow of up to 30%.

Solar Tracker STCE55 model is a model that is accepted worldwide and is referred to as 55 inch solar tracker in single axis tracking systems. Due to its programming capability, it is a system that can be driven by Dc Motor. Thanks to the holder arms in the gearbox, fast connection to 120x120 profiles, which are frequently used in existing projects, is provided. Thanks to the hard stop feature in the gearbox, it has an automatic stop feature so that the panels do not exceed a certain angle in wind or any challenging weather conditions.

 LARGE SIZE HUB GEAR AND HARD STOP: Special steel alloy high modulus "Wide Load Carrying" capacity designed according to the gear thickness 2.5 times the safety coefficient is added and 3G50 material alloy. Thanks to its patented design, it has a mechanical-automatic stop feature that works at a certain degree angle and prevents the panels from falling in case of any accident.
 RECIPROCATING SCREW GEAR: Made of special alloy 8620 cemented gear material. It is normalized and hardened to 48-52 HRC and the profiles are specially ground to minimize the friction coefficient.
 PROFILE HOLDER FLANGE: It is produced in a monolithic manner with thick, conical and 3G50 material threaded in suitable dimensions for the profiles that will carry the panels. Within the existing construction, it will be manufactured in suitable dimensions with fitting and bolt connection.
 DC MOTOR: Planetary dc motor is preferred due to its ease of programming within the existing system.
